National Tsunami Warning Center, NOAA/NWS

TSUNAMI of 23 June, 2014 (Rat Islands, Alaska)

A great earthquake with a moment magnitude of 7.9 (USGS magnitude) occurred at 20:53:09.9 UTC 23 June, 2014 (day 174) and was located 246 mi/396 km ESE of Attu Station, Alaska (51.797N 178.760W, 66.8 mi/107.5 km depth--USGS location).

This earthquake caused a tsunami that was recorded at tide gages monitored by the National Tsunami Warning Center (NTWC). Many observatories provide data to the Center; such as the NOAA National Ocean Service, the U. of Hawaii Sea Level Center, the Chilean Navy, the Japan Meteorological Agency and the National Tidal Facility in Australia among others. Click on the site name to see a graph of the tsunami, when available. Listed wave heights are maximum amplitude in cm (above sea level). Observed Arrival time is the actual tsunami arrival time in UTC on gages where it could be determined. The Computed Arrival time is the estimated time of wave arrival computed at the NTWC based on the earthquake origin time and location. The Sample Interval column shows the time between data samples.

For additional information about this tsunami event see the Pacific Tsunami Warning Center's homepage.

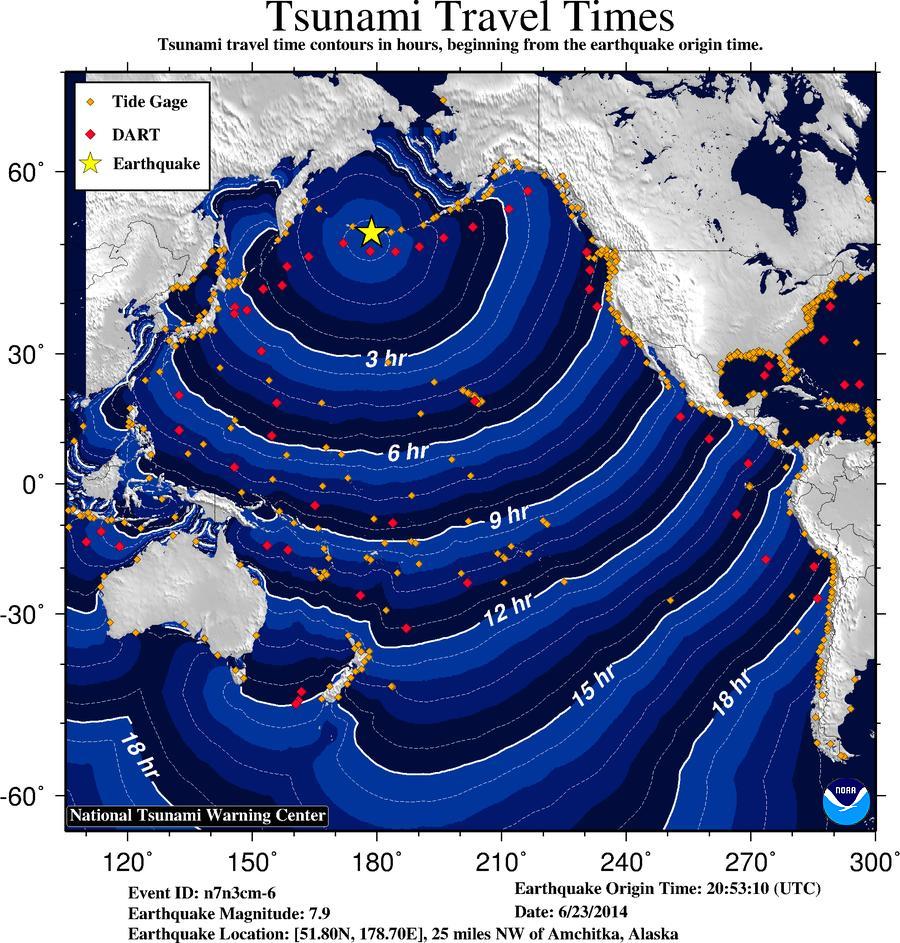

Travel Time Map
(click to enlarge)

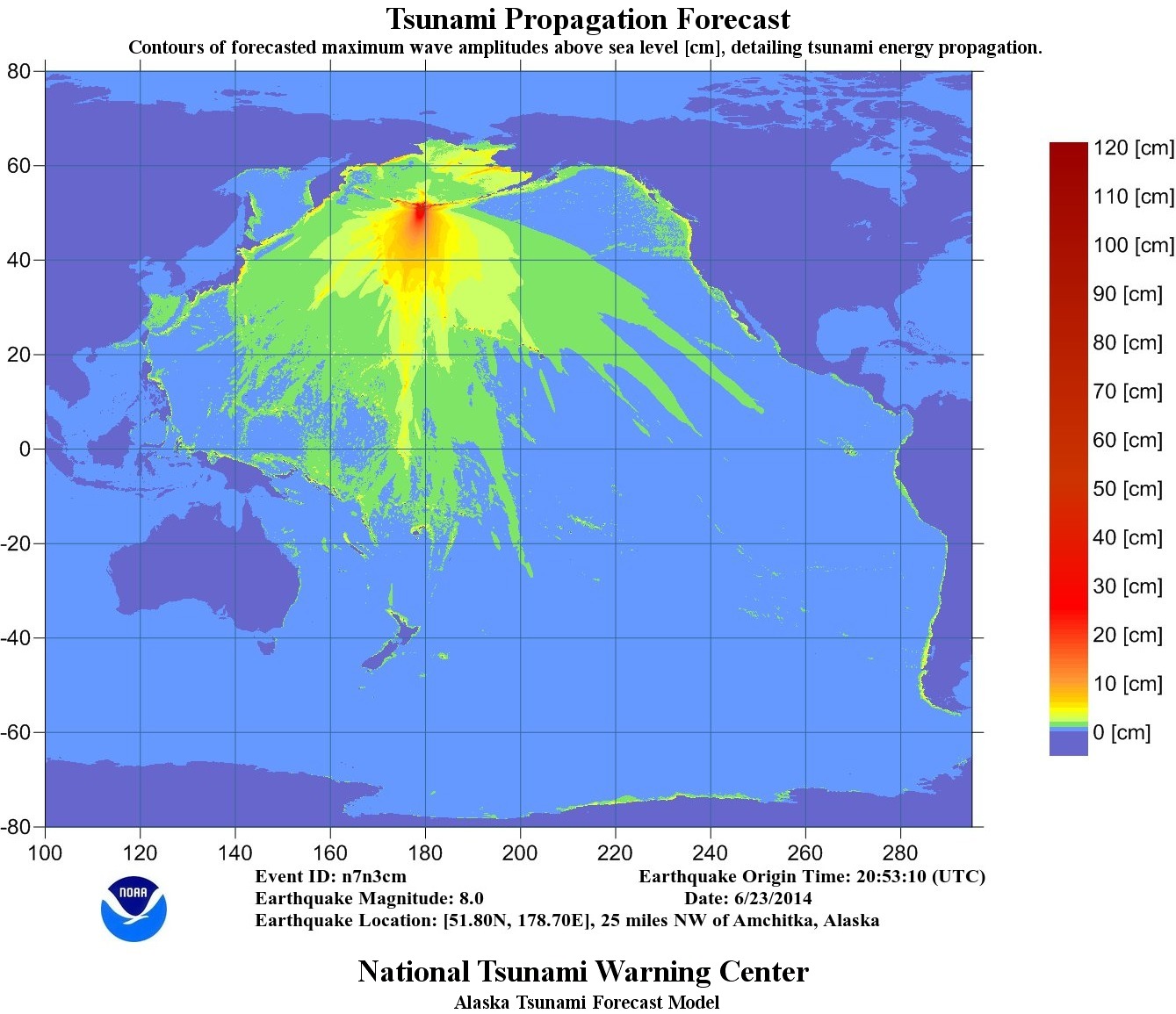

Maximum Amplitude Graph
(click to enlarge)



Tide gage/
Measurement Location

Estimated Arrival Time
[UTC (J.Day)]

Observed Arrival time
[UTC (J.Day)]

Peak amplitude
(above sea level in cm)

Time of Peak Amplitude Measurement
[UTC (J.Day)]

Model Forecast Amplitude
(above sea level in cm)

Initial motion

Sample Interval
(min)

Data File
(Julian Day Starts
at 0000 UTC)

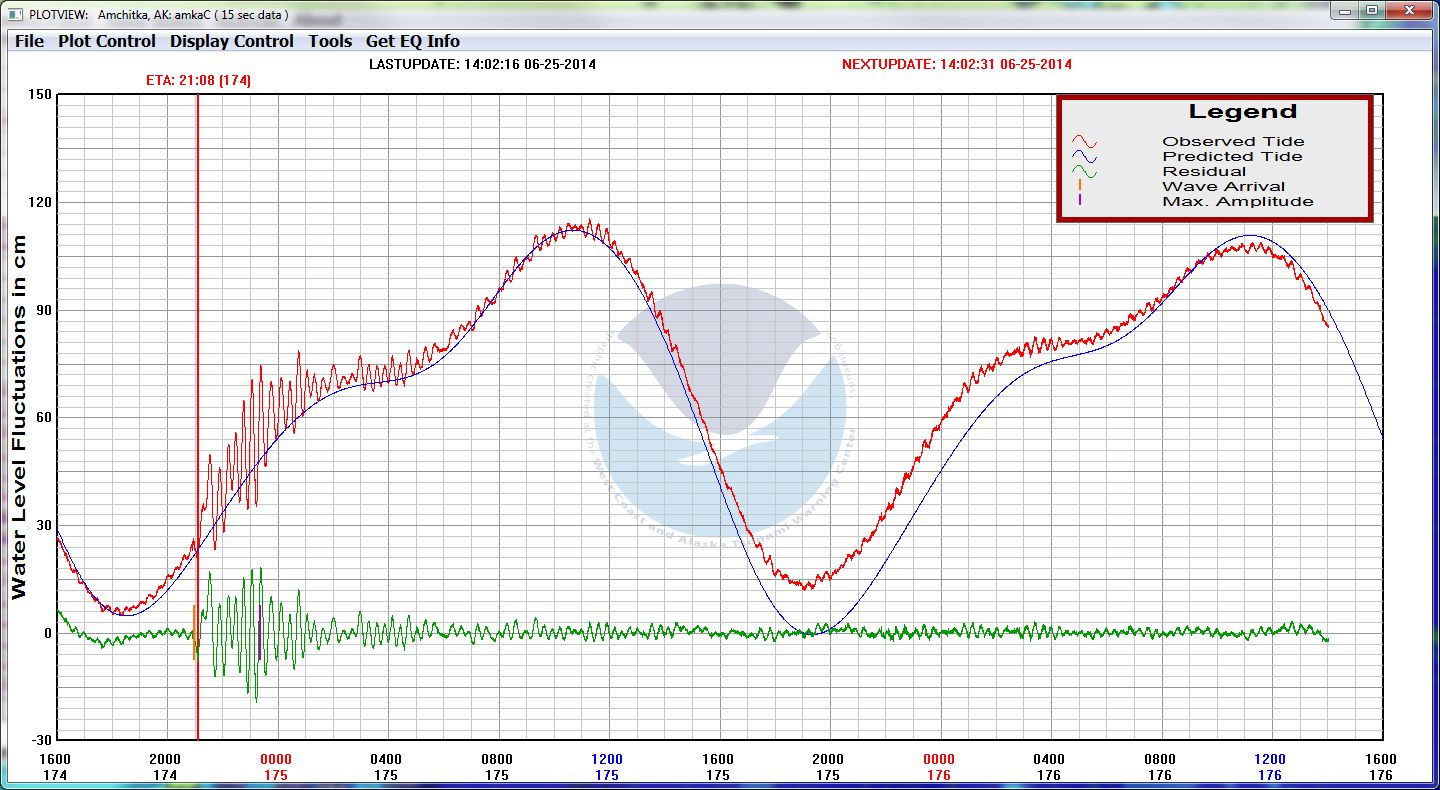

Amchitka, AK

2109 (174)

2057 (174)

17

2322 (174)

-

down

1

174, 175

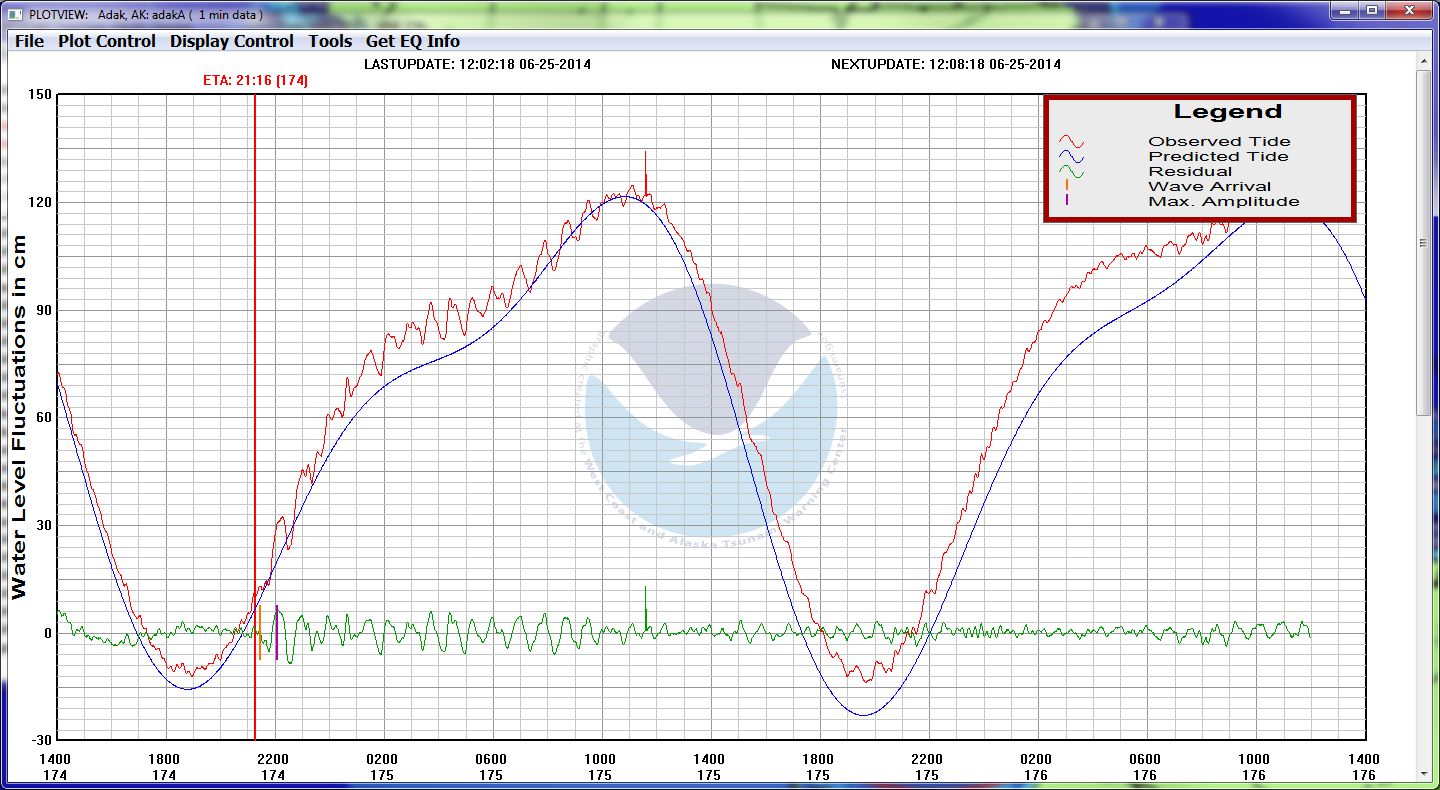

Adak, AK

2116 (174)

2128 (174)

6

2206 (174)

6

down

1

174, 175

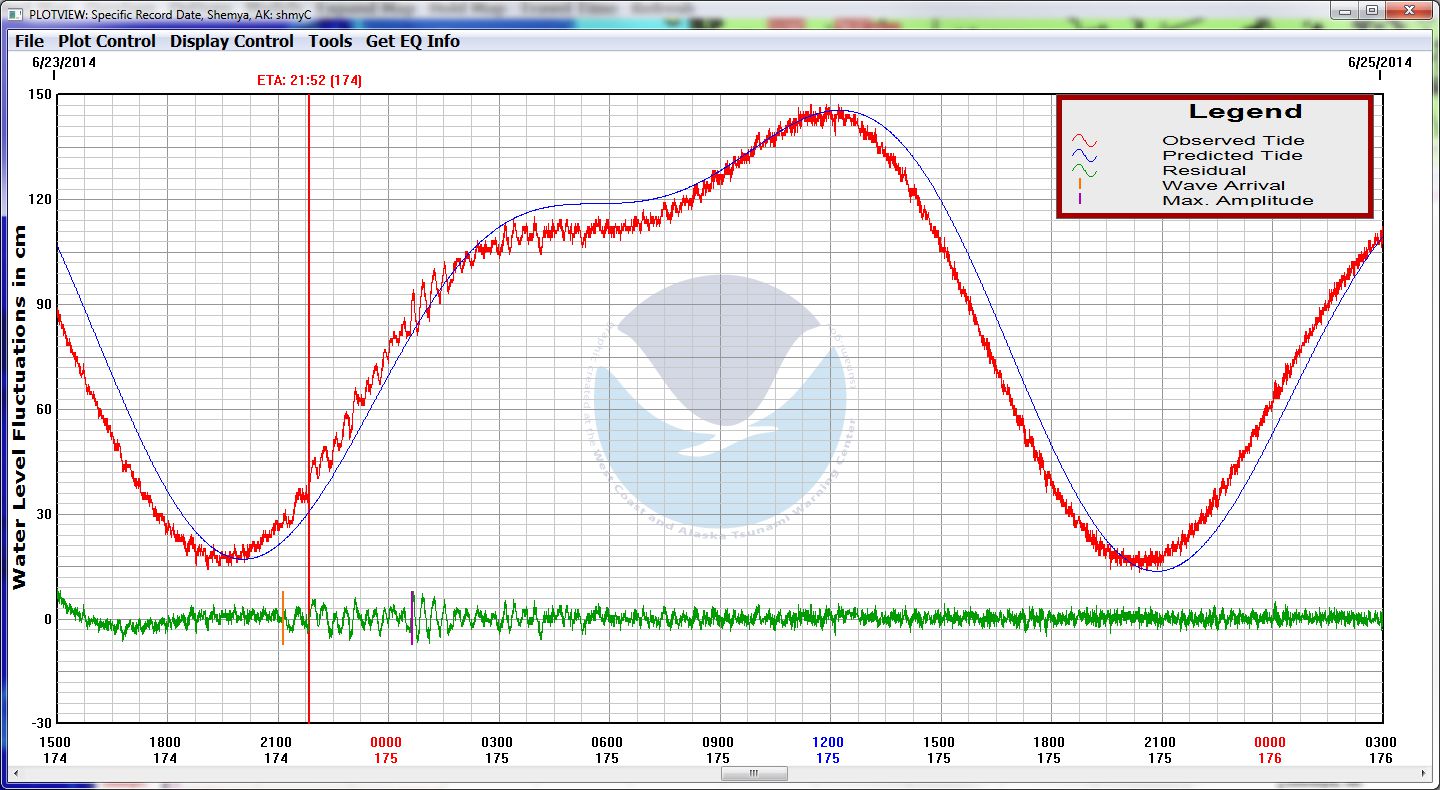

Shemya, AK

2152 (174)

2109 (174)

7

0039 (175)

5

down

15 sec

174, 175

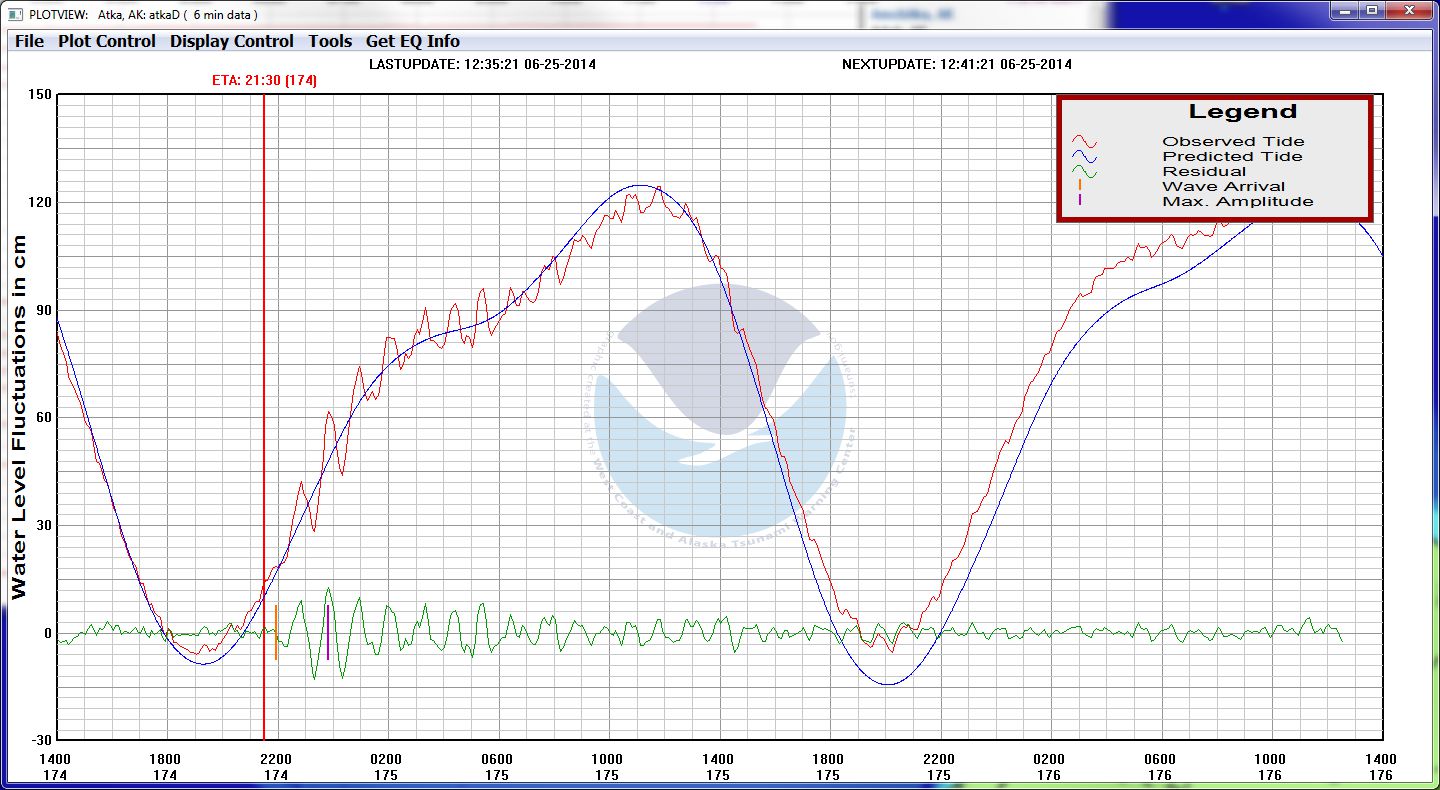

Atka, AK

2130 (174)

2157 (174)

12

2350 (174)

-

down

6

174, 175

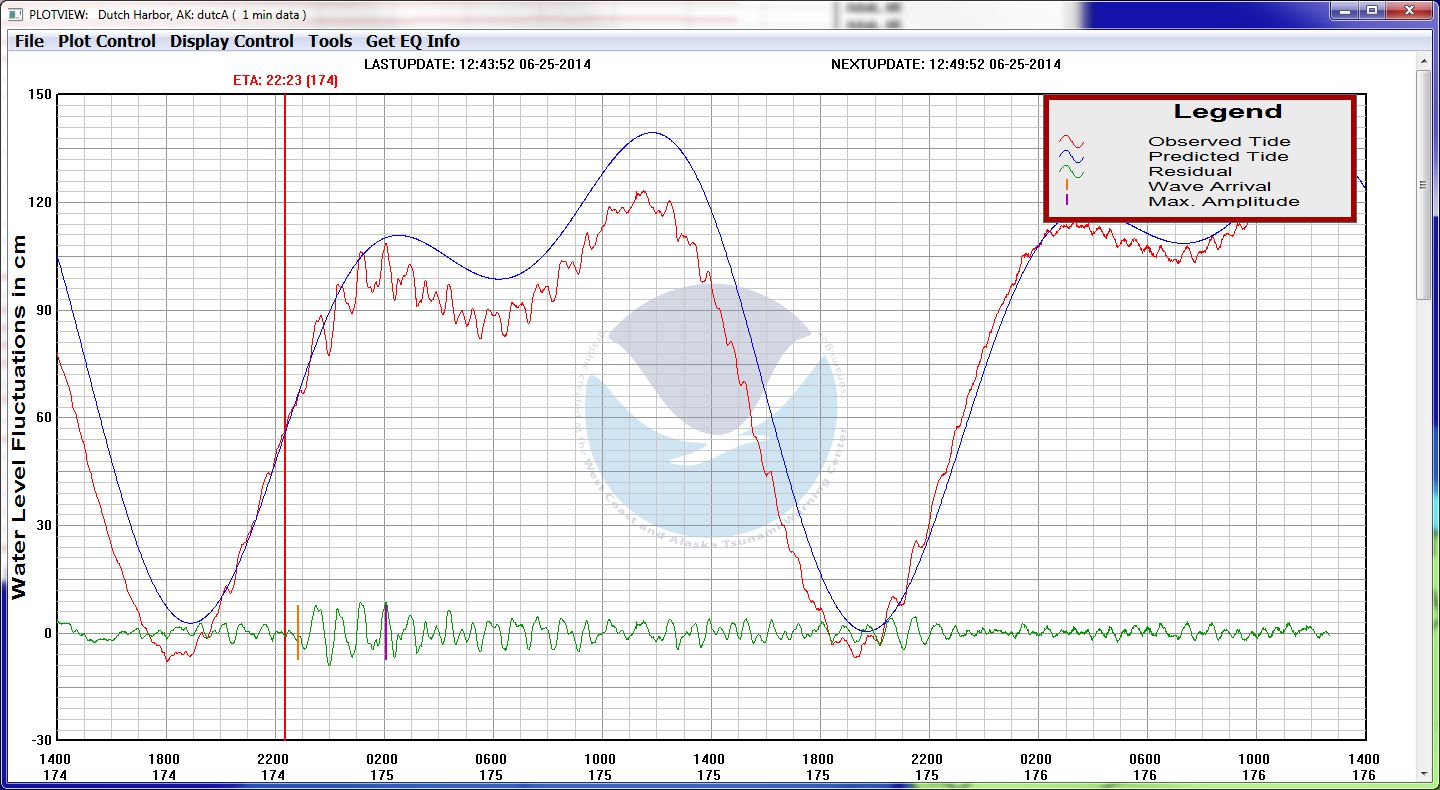

Dutch Harbor, AK

2223 (174)

2252 (174)

8

0204 (175)

1

down

1

174, 175

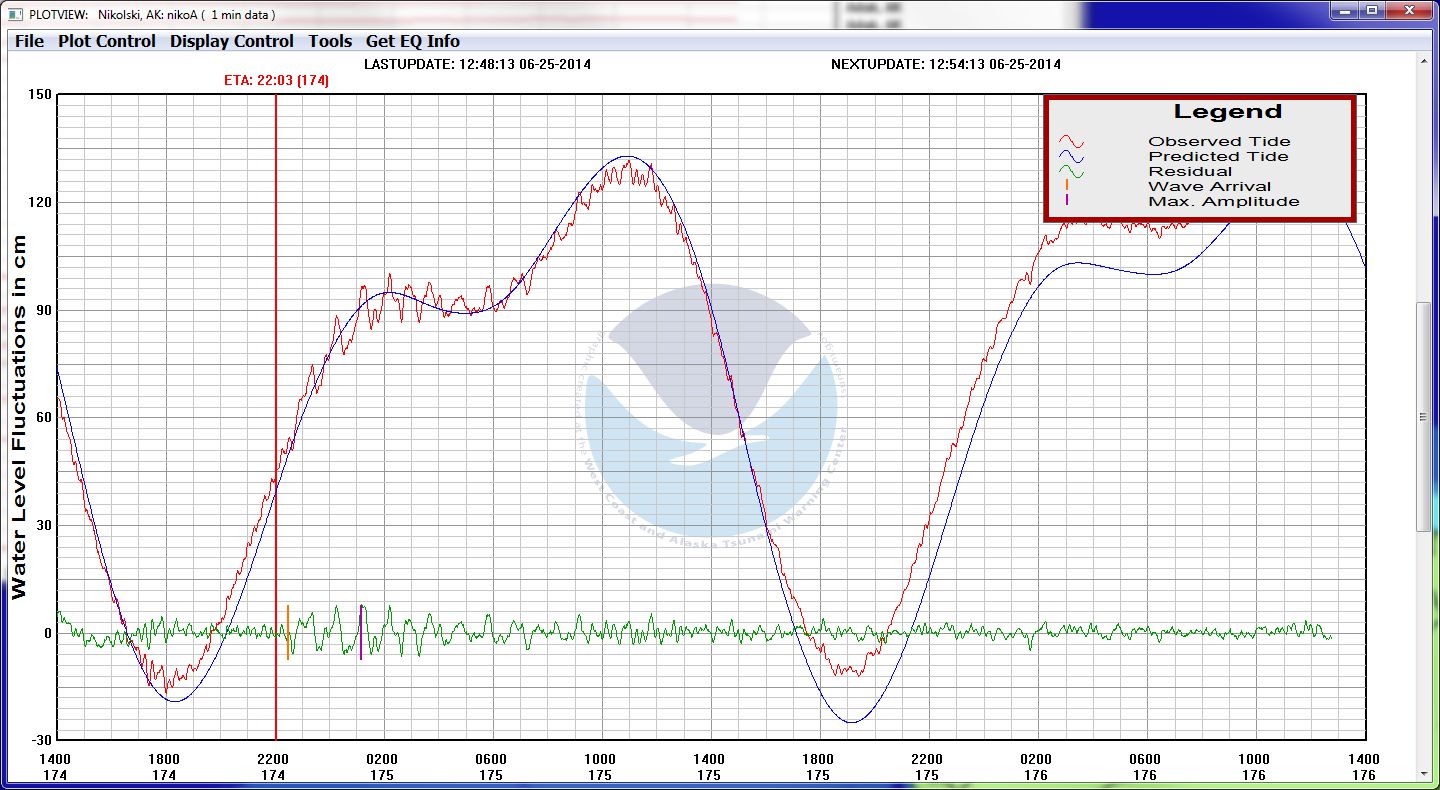

Nikolski, AK

2203 (174)

2230 (174)

8

0110 (175)

4

down

1

174, 175

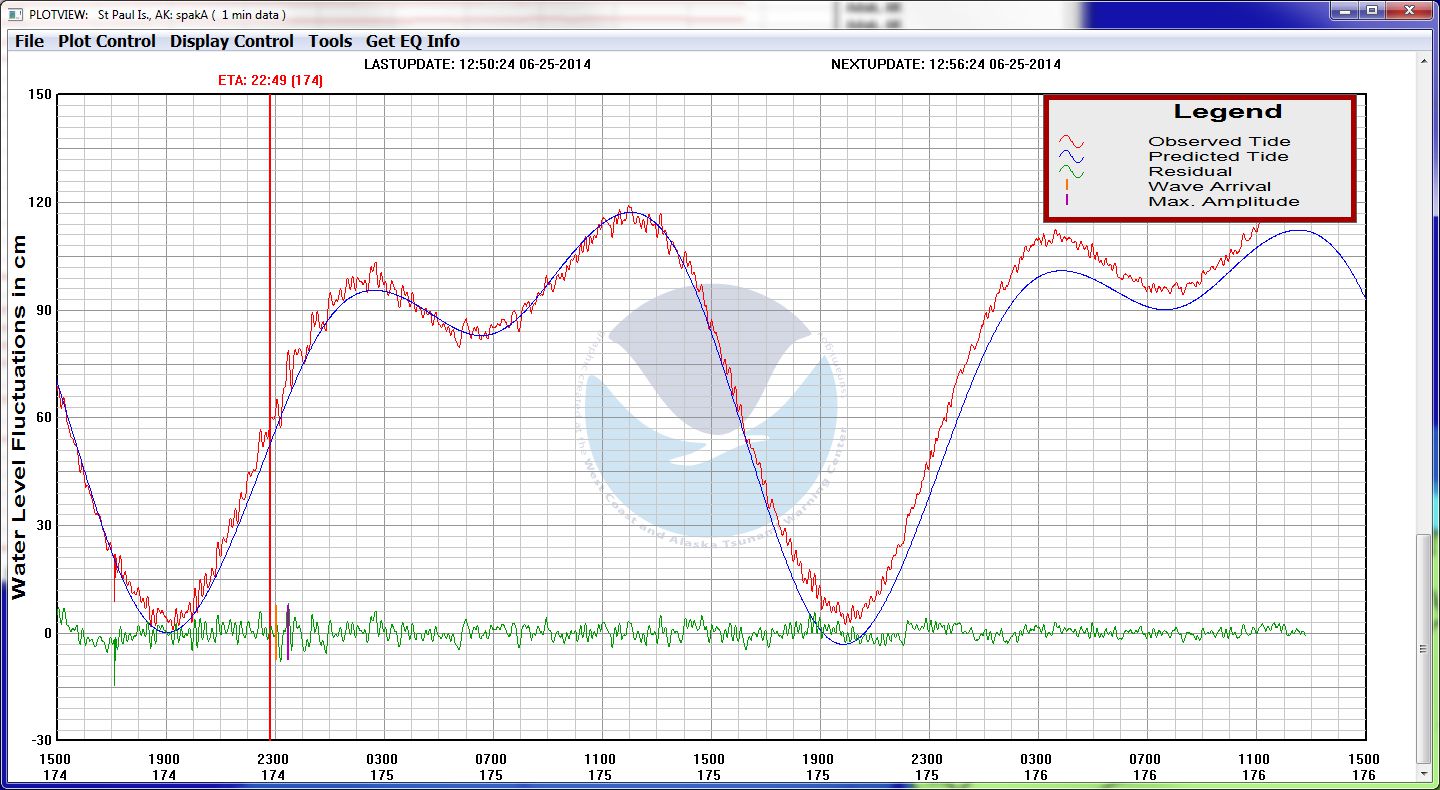

St. Paul, AK

2249(174)

2304 (174)

8

2329 (174)

3

down

1

174, 175

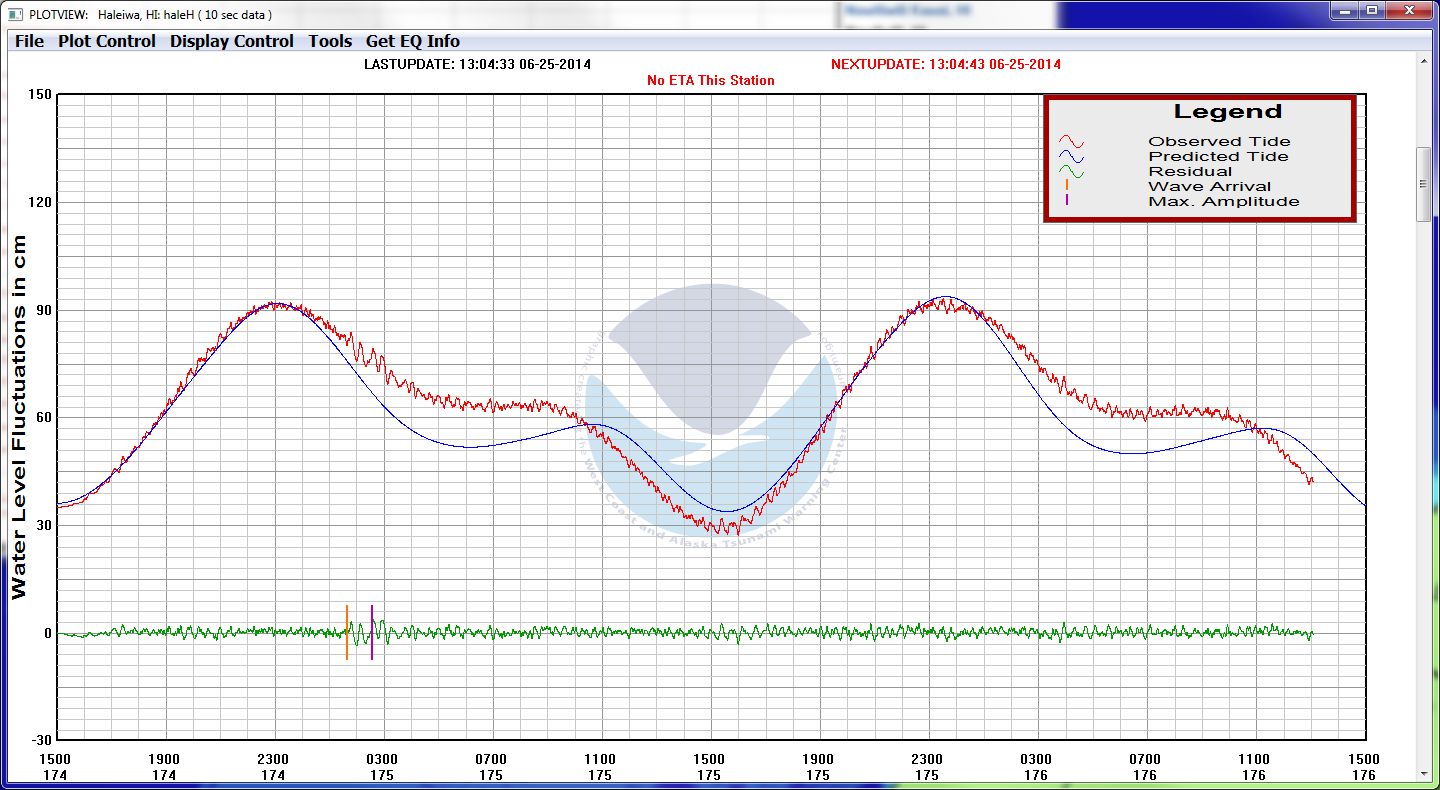

Haleiwa, Hawaii

-

0140 (175)

4

0235 (175)

-

up

10 sec

174, 175

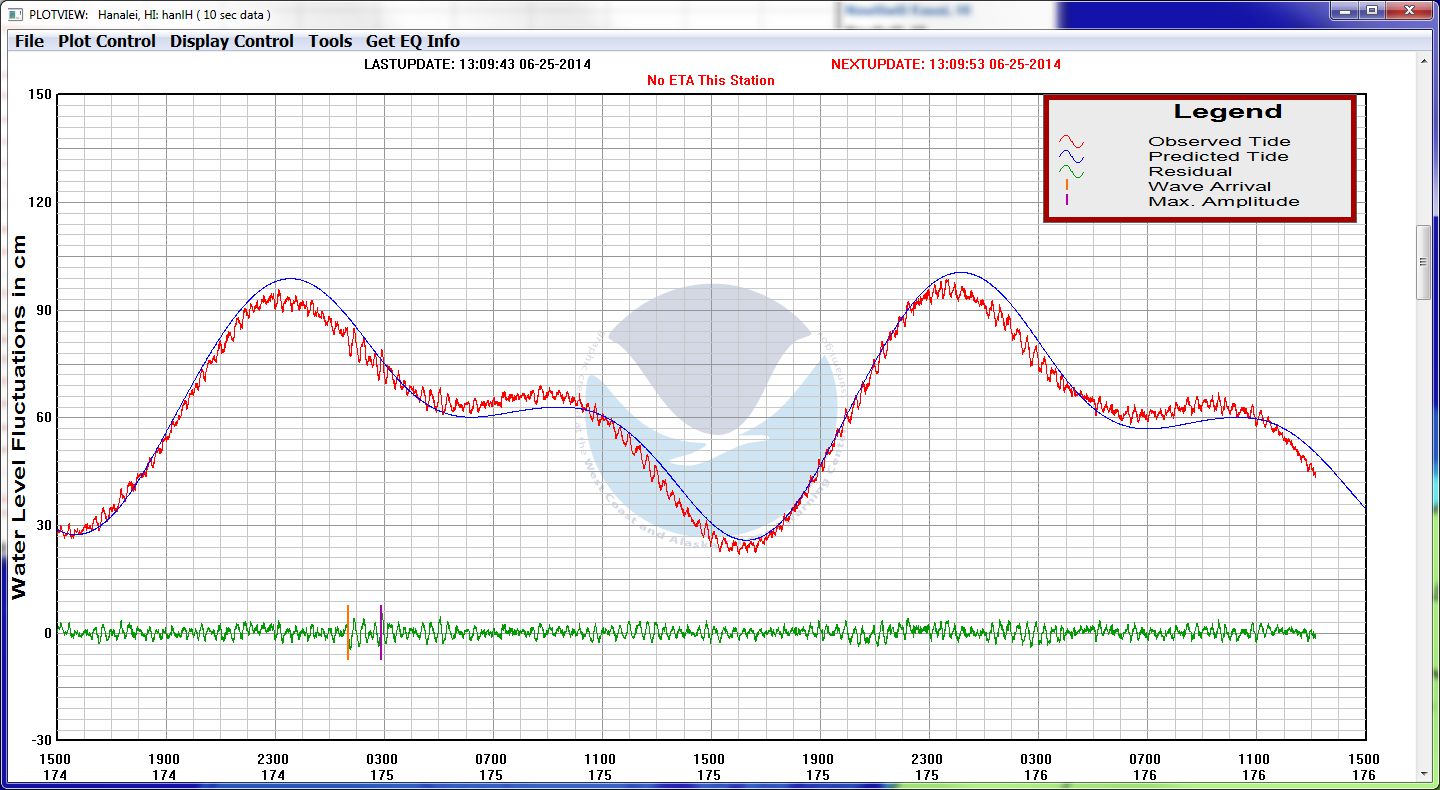

Hanalei, Hawaii

-

0142 (175)

5

0255 (175)

-

down

10 sec

174, 175

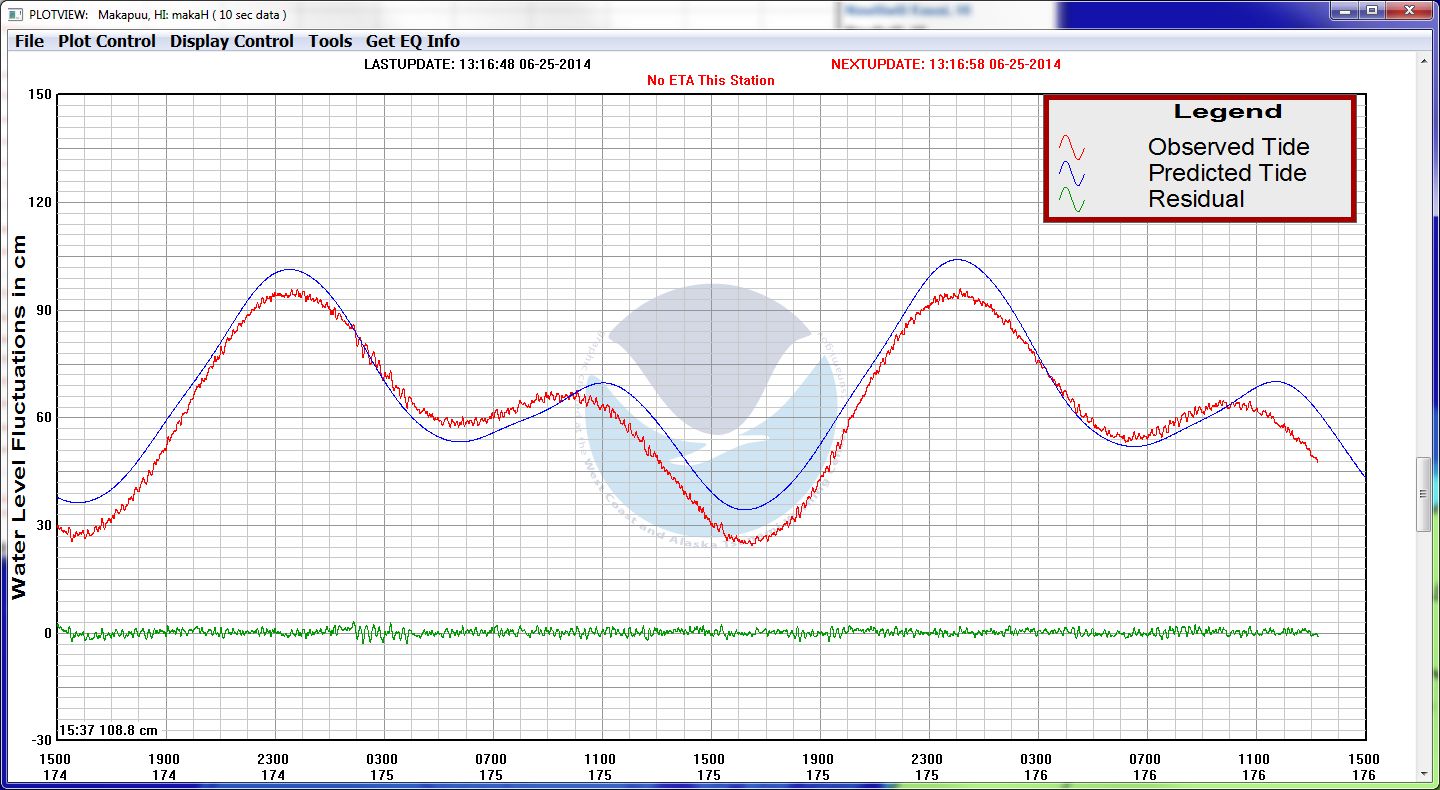

Makapuu, Hawaii

-

0144 (175)

3

0147 (175)

-

?

10 sec

174, 175

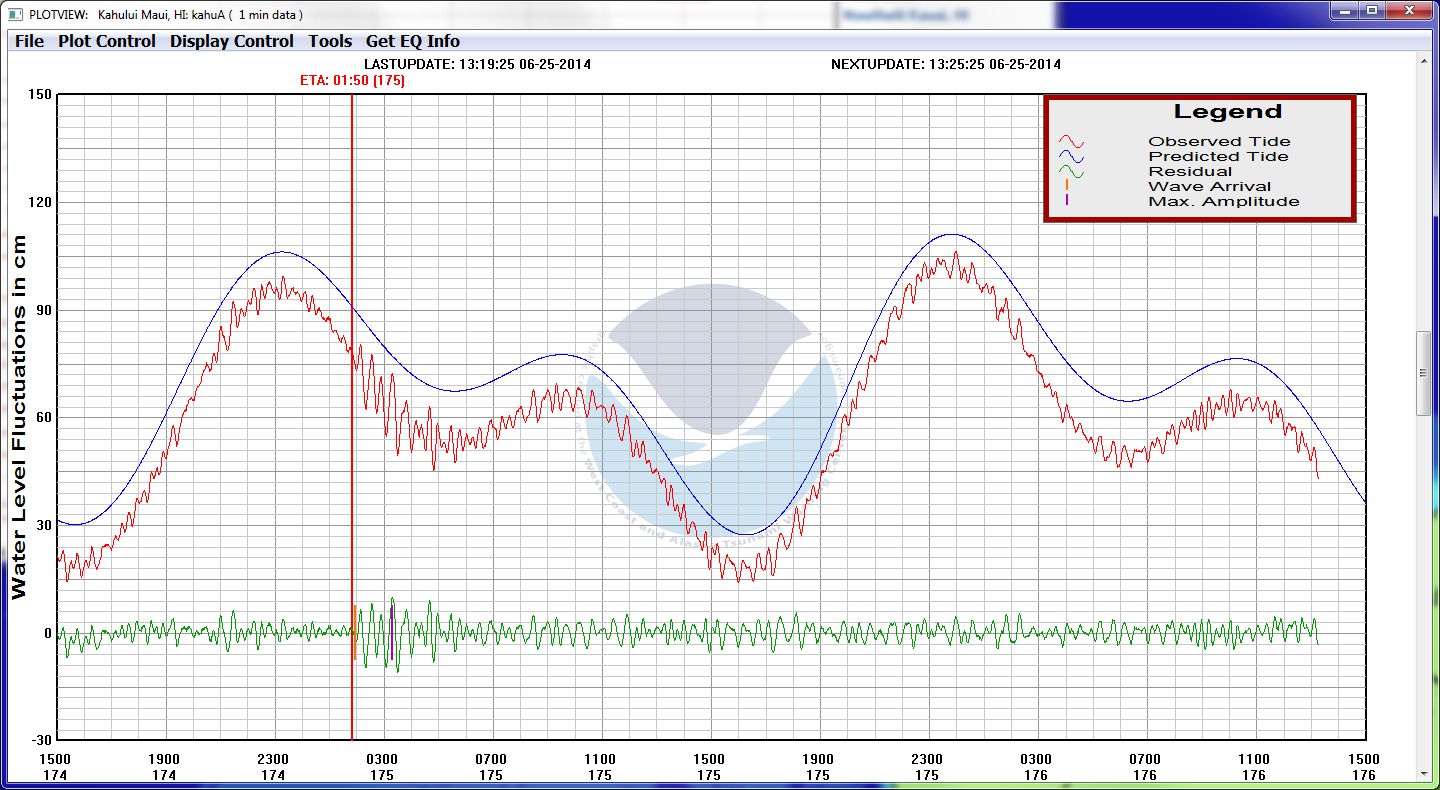

Kahului Maui, Hawaii

0150 (175)

0157 (175)

10

0318 (175)

-

up

1

174, 175

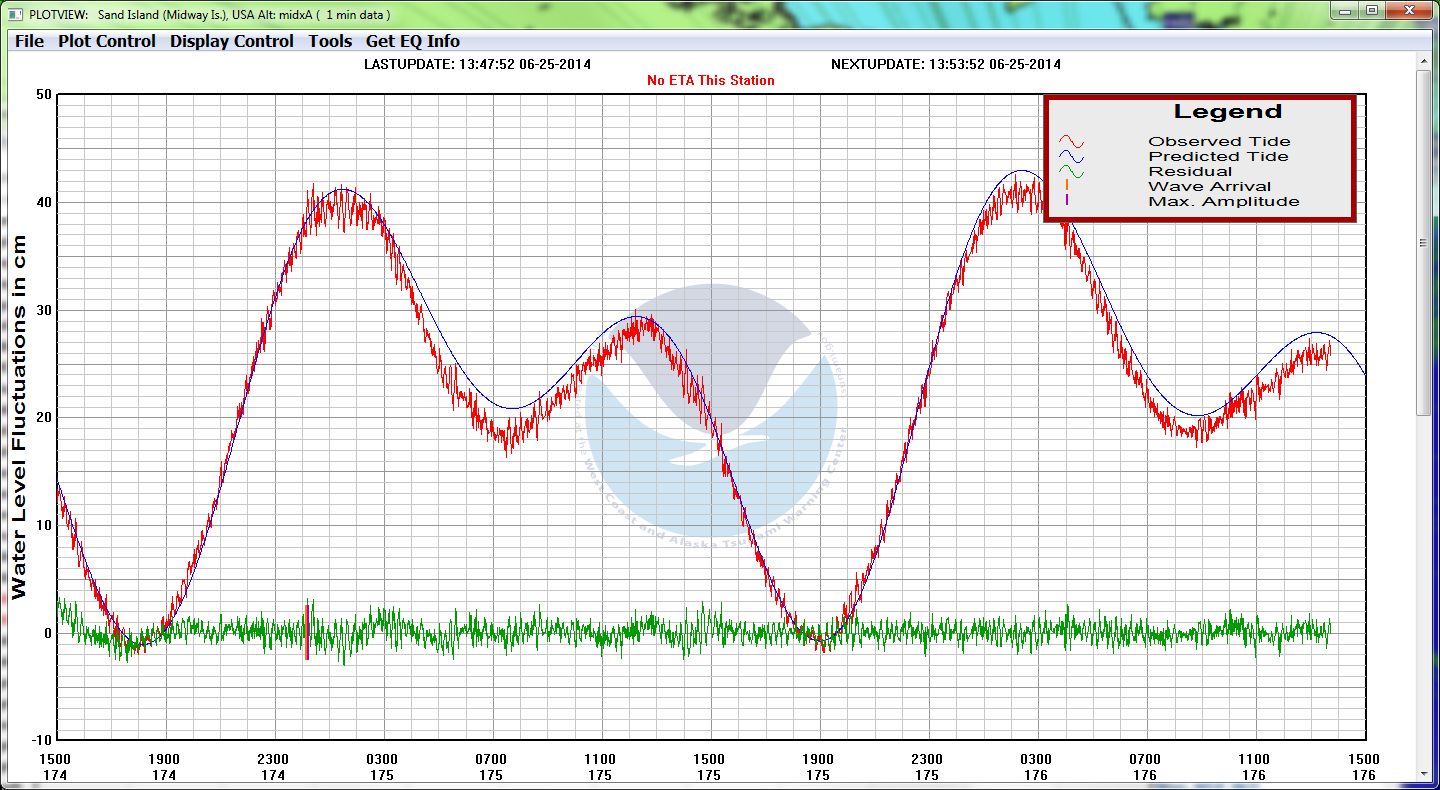

Sand Island, Midway

0008 (175)

0010 (175)

3

0014 (175)

-

-

1

174, 175
